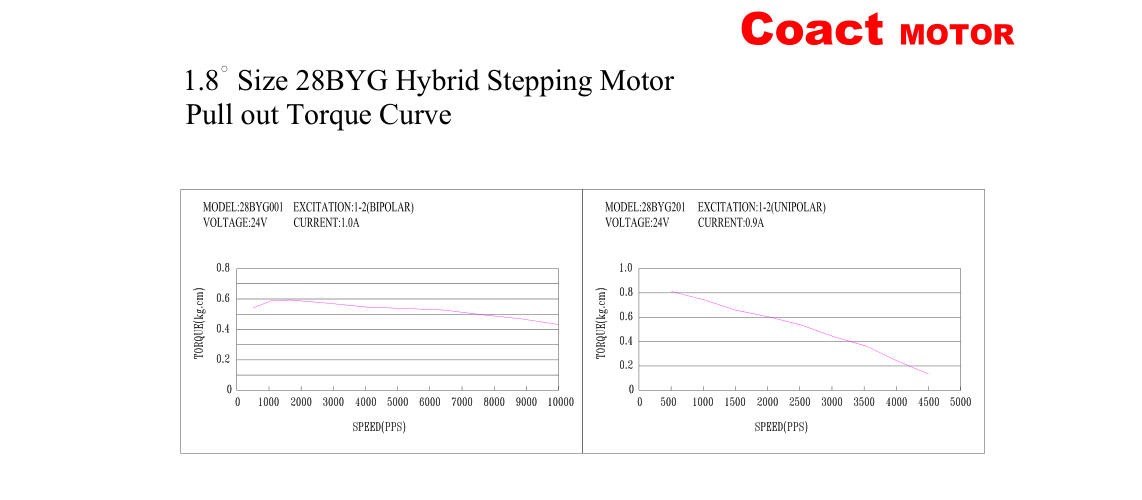

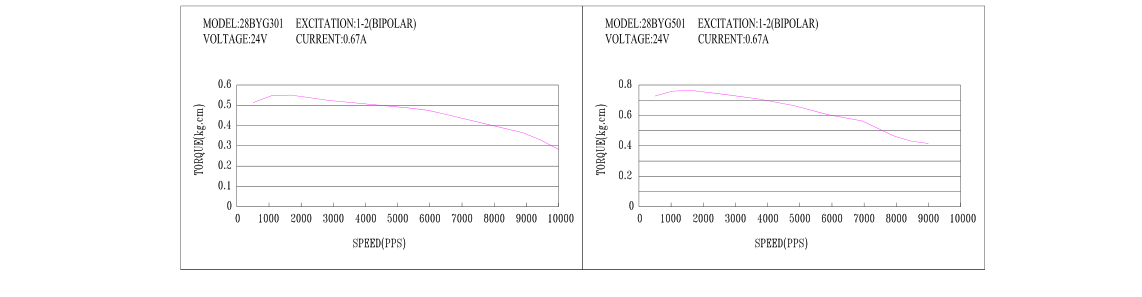

1.8° 28系列二相/四相混合式步进电机的技术参数General Specification
项目Item | 规格Specifications |
步距角精度Step Angle Accuracy | ± 5% (full step, no load) |
电阻精度Resistance Accuracy | ± 10% |
电感精度Inductance Accuracy | ± 20% |
温升Temperature Rise | 80°C Max. (rated current, 2 phase on) |
环境温度Ambient Temperature | - 10°C ~ +50°C |
绝缘等级Insulation Class | B |
介电强度Dielectric Strength | 500 VAC for one minute |
型号 Model No. | 电压 Rated Voltage | 电流 Current | 电阻 Resistance | 电感 Inductance | 最大静力矩Holding Torque | 引出线 # of Leads | 动弹惯量Rotor Inertia | 沉量Weight | 机身长度Length |
V | A | W | mH | Kg-cm | g-cm2 | Kg | mm | ||
28BYG001 | 3.0 | 1.0 | 3 | 2.2 | 0.95 | 4 | 11 | 0.13 | 40 |
28BYG201 | 4.5 | 0.9 | 5.0 | 1.8 | 0.9 | 6 | 18 | 0.2 | 51 |
28BYG301 | 3.75 | 0.67 | 5.6 | 4.0 | 0.7 | 4 | 9 | 0.11 | 32 |
28BYG501 | 4.56 | 0.67 | 6.8 | 4.8 | 1.06 | 4 | 12 | 0.15 | 45 |

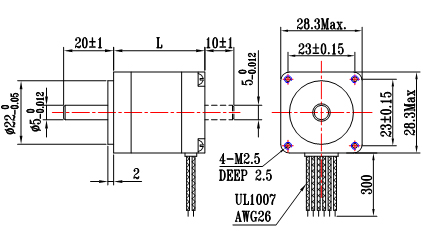

1.8° 28系列二相/四相混合式步进电机的机械尺寸Dimensions(Unit=mm)

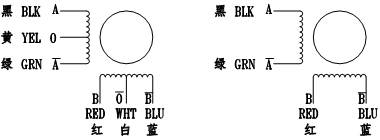

1.8° 28系列二相/四相混合式步进电机的绕线图Wiring Diagram
